Stage rigging suspended over performers demands absolute structural rigor. A single improperly installed shackle or uncalculated dynamic force during scenic shifts can result in catastrophic failure.
1. The 10:1 Design Factor Rule
For overhead rigging suspended above personnel, standard industry regulations require a minimum 10:1 safety factor on all hardware breaking strengths. If a steel wire rope eye splice has a working load limit (WLL) of 1,000 lbs, its static load must never exceed 100 lbs.
"Dynamic loads created during high-speed hoist acceleration can double the static weight exerted on truss grid points."
2. Essential Daily Pre-Show Inspection Checklist
- Crosby Clip Orientation: Verify all wire rope clips have "never saddle a dead horse" u-bolt orientation.

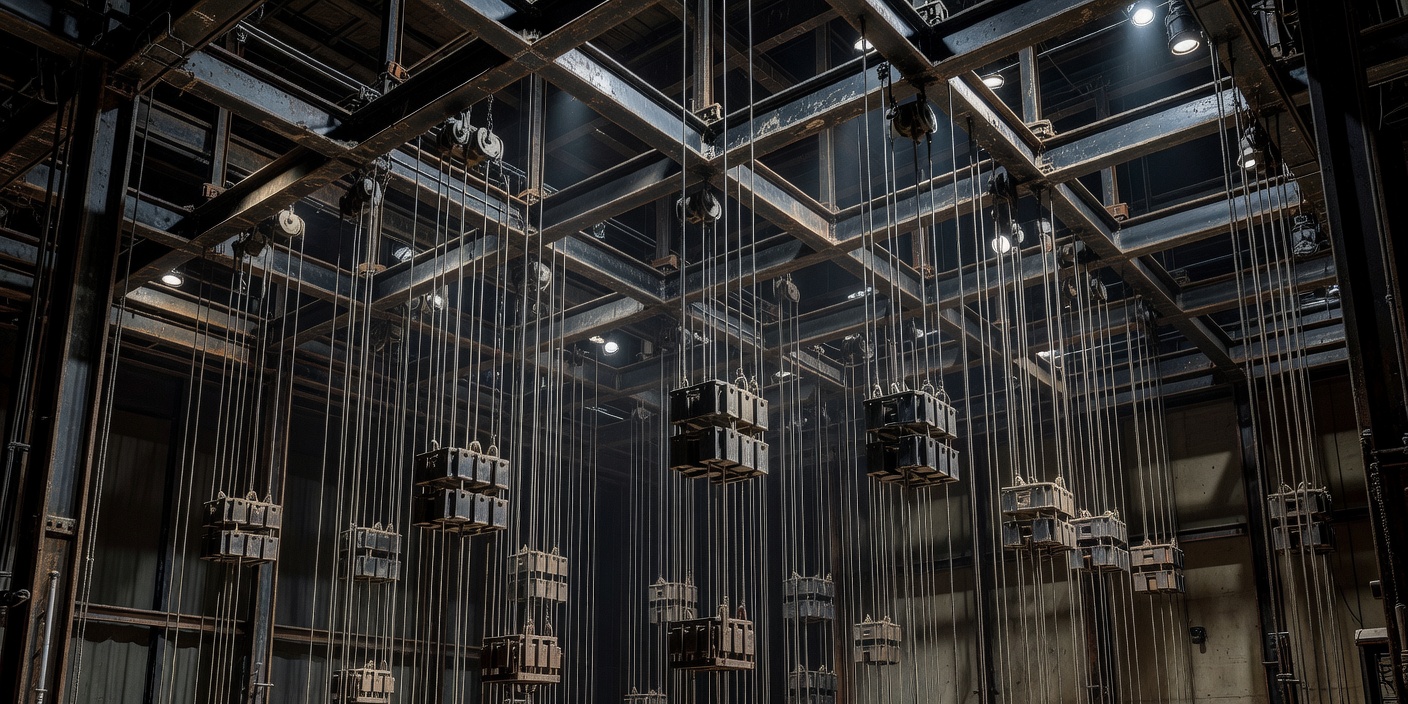

- Arbor Lock Engagement: Confirm counterweight arbor rope locks are fully pinned when battens are held stationary.
- Load Cell Verification: Calibrate electronic strain gauges on heavy electric sets before lighting focus.
- Clearance Run-Through: Perform full-speed fly line tests while monitoring acoustic clearance lines.
By integrating automated calculation software like RigMaster 3D alongside physical inspections, stage crews maintain complete safety compliance throughout rigorous tour schedules.
