Engineering Structural Integrity on Stage

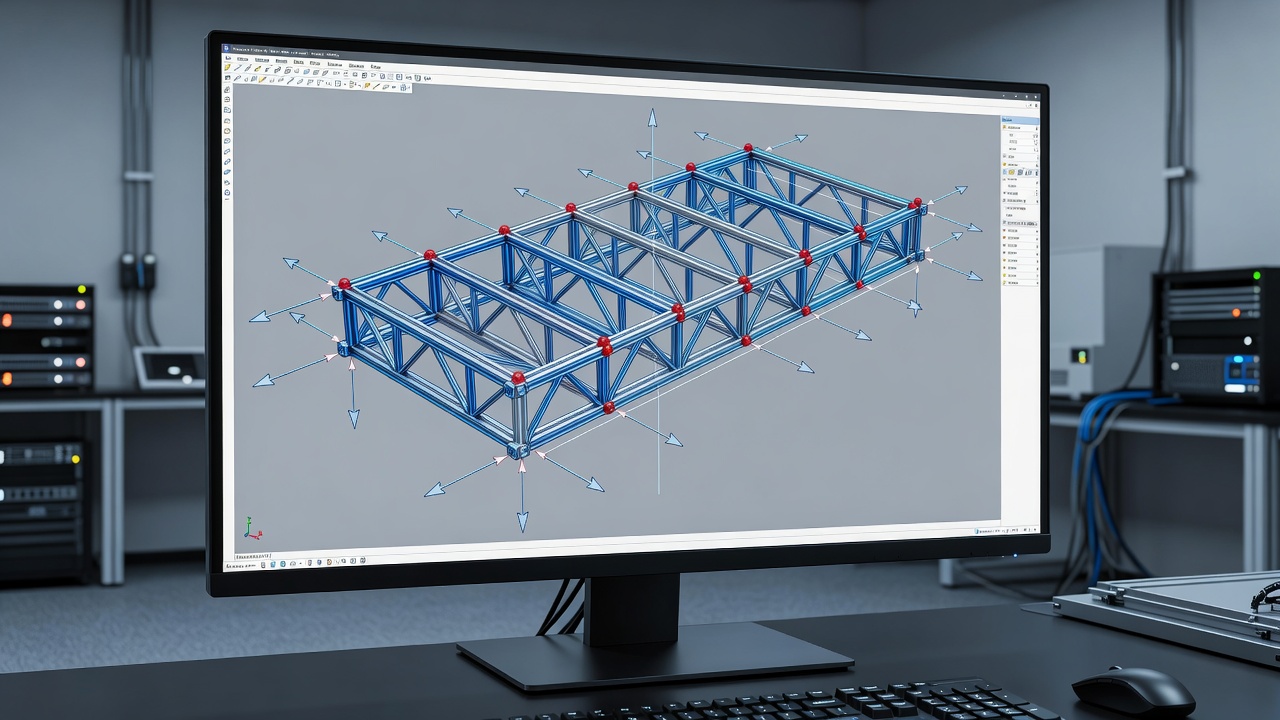

Overhead rigging requires exact load calculations. RigMaster 3D dynamic load suite evaluates point loads, uniformly distributed loads (UDL), bridle angles, and chain hoist deflection limits in real time.
Core Rigging Capabilities
- Automated Bridle Angle Vectors: Instant load balance calculations for 2-leg and 3-leg steel wire rope bridles.
- Motor Hoist Load Monitoring: Integrates with real-time load cell telemetry to alert riggers of weight transfers.
- Truss Cross-Section Library: Pre-loaded manufacturer specs for global standard trussing (Eurotruss, Tomcat, Prolyte).
- Safety Factor Warning Engine: Configurable safety parameters (10:1 or 8:1 rating alerts).
Safety & Audit Readiness
Generates stamped PDF technical safety compliance sheets instantly for venue management sign-off and structural municipal permits.
